Cubis® II Semi-Micro Balance
The modular weighing system Cubis® II can be individually configured from different components. The combinability of the display unit, weighing module, draft shield, software packages for various applications and functions and a comprehensive range of accessories allows the individual adaptation of the Cubis® II balance to all weighing tasks.
The new generation of modular premium laboratory balances
For scientists in R&D and analytical laboratories who need the most reliable laboratory weighing results, the Cubis® II laboratory balance fully enables modular, high-performance hardware and software that meets your unique requirements to maximize operational efficiency and experimental results. All Cubis® II balance modules are designed for intuitive operation, with intelligent diagnostic systems. These design elements guarantee a higher degree of repeatability for different workflows, while reducing the possibility of human error during measurement.

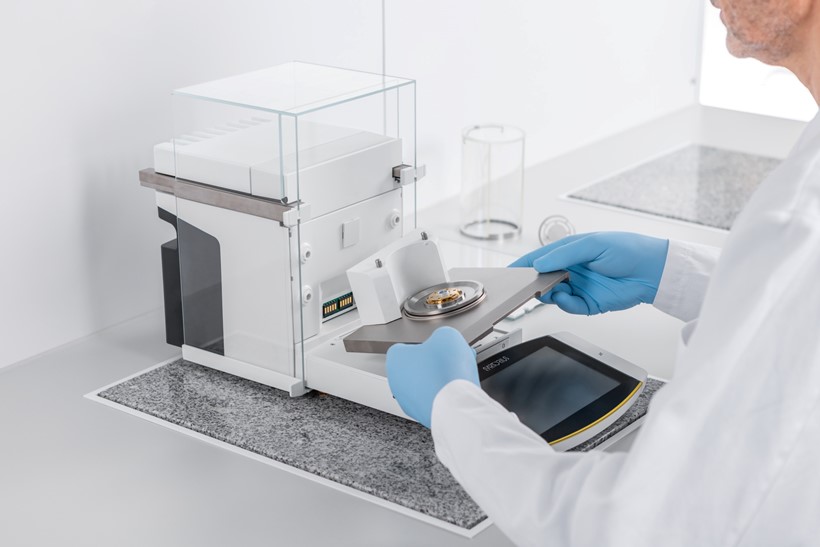

Customizable modularity
- weighing modules - choose from among 45 weighing modules adapted to your needs and requirements
- draft shields - 7 different options with unique features and a user-oriented design
- user interface - choose between advanced (MCA) and basic user interface (MCE)
- software with up to 60 optional applications grouped into QApp packages
- flawless connection
- long-term flexibility
Confident compliance
- compliance with 21 CFR Part 11 and EU Annex 11 Compliance
- complete traceability
- submission-Ready Data
- governance through User Management
- audit trail and alibi memory
- electronic signatures
Intelligence by design
- intuitive applications
- automatic motorized leveling
- protective chamber technology with automated or manual control
- motion sensor
- the titanium weighing area has been increased by 66%, ensuring accurate measurements thanks to its non-magnetic properties
- various sample holders ensure ergonomic weighing and a wide range of applications
- climate sensor for monitoring environmental conditions (available only on MCA models), such as temperature, humidity, airflow, and air pressure
- status center for notifications (available only on MCA models)
- 4 ionization nozzles provide fast and complete elimination of electrostatic charge
Q-APP PACKAGES
QApp-Packages are software programs (QApps), for instance, lab applications, functions, or utilities. After licensing, these QApps can be activated and run in a task. The licenses for the QApp-Packages can be ordered together with the balance. All packages are pre-installed on the balance and ready for use after delivery. In the QApp-Center, browse through the packages to obtain detailed information about their content.
1. PHARMA PACKAGE QP1
The Pharma software application package contains applications concerning the topic compliance with pharmaceutical-relevant guidelines, such as 21 CFR Part 11 and USP 39, Chapter 41. The Pharma package includes applications such as user management, digital signatures, audit trail, USP minimum weight.
2. ADVANCED PACKAGE QP2
Advanced weighing applications include many useful applications that cover the most common laboratory workflows: density determination, percentage weighing, counting, filter weighing, checkweighing, formulation, averaging, etc.
3. UTILITIES PACKAGE QP3
The Utility software application package contains weighing applications and function extensions such as: color scheme, free formula, diameter determination, statistics, printing of QR | bar codes, etc.
4. CONNECTIVITY PACKAGE QP4
Includes data exchange applications for seamless balance integration in your IT environment (applications for data exchange, for example to Windows file server, FTPS, STARLIMS™, etc.)
Simple cleaning
The new QApp cleaning software provides step-by-step instructions, along with helpful visual references, to simplify routine and advanced cleaning procedures, along with documentation steps that easily integrate with standard operating procedures (SOP). The Cleaning QApp guides you through every step of daily and advanced cleanings, making cleaning a seamless part of your audit trail and supporting compliance standards.
Why choose the Cubis II semi-micro balance?
- fastest measurement time in its category
- improved specifications thanks to the 4th generation monolithic weighing system
- intelligent compensating systems manage temperature, humidity, and air pressure, ensuring stable balance behavior
- fully discharged samples thanks to the new ionizing technology and conductive coating layer
- intuitive cleaning and process documentation thanks to the new Cleaning QApp
- investment security due to hardware and software upgradeability
- compliance with 21CFR Part 11 and EU Annex 11
- secure digital data management and seamless LIMs integration via connectors
