Multi-Parallel Bioreactors

Small-scale multi-parallel bioreactors provide more process information to compare cultures in less time. Multiple experiments can evaluate different clones or cell lines, as well as the effects of pH, temperature, feeding, medium, gassing rate and inoculation density. Ambr® multi-parallel bioreactors support your upstream processes, from clone or cell line selection to process optimization, ensuring scalability as process data transfers well to 2 L Univessel® SU vessels and larger Biostat STR® bioreactor systems.

Simplify Your Process With Ambr®

Find the Right Ambr® System for Your Application

Ambr® Bioreactor Systems are available with different working volumes and configurations to suit your specific application needs.

Ambr® 15 Cell CultureAmbr® 250 ModularAmbr® 250 High ThroughputAmbr® 250 High Throughput Perfusion
Vessel working volume10 - 15 mL100 - 250 mL100 - 250 mL100 - 250 mL
Number of parallel cultivations24 - 482 - 812 - 2412 - 24
Insect and mammalian cell culture

Microbial culture

Automated liquid handling

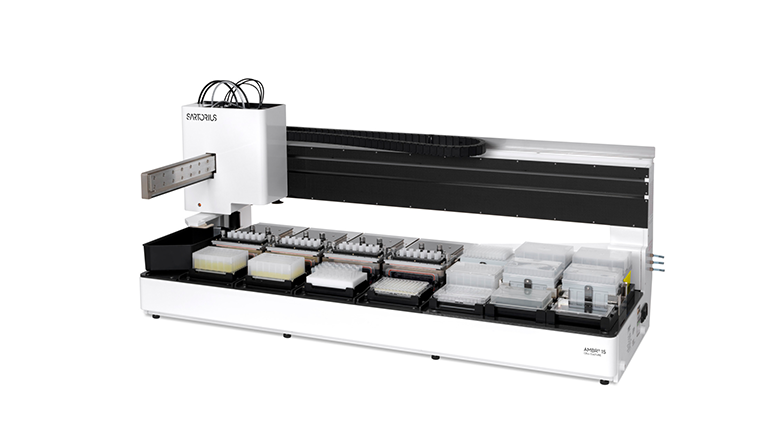

Ambr® 15 Cell Culture

Bioreactor for improved cell line selection

Ambr® 15 Cell Culture, a high-throughput, parallel automated bioreactor system, facilitates the selection of the best clones, media and feeds under small-scale bioreactor conditions.

  • run 24 or 48 parallel cultivations at the 10 – 15 mL microbioreactor scale
  • modernize cell line development workflows
  • use high-throughput automation to screen more clones and

Find out more

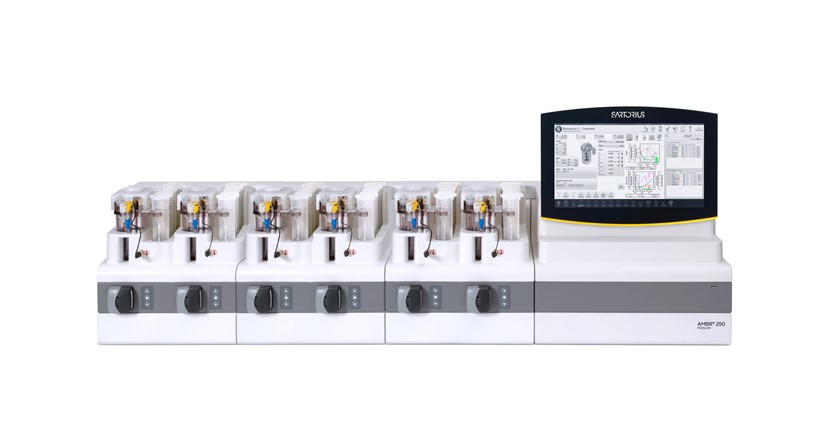

Ambr ® 250 Modular

Bioreactor for simplifed operation

Ambr® 250 Modular, an easy-to-use, expandable benchtop system that integrates 2 – 8 single-use 100 – 250 mL mini bioreactors.

  • select a vessel configuration to suit the application, with baffled versions available for mammalian and microbial cultures and unbaffled for cell and gene therapy
  • operate 8 bioreactors at a time on 2m of bench space

Find out more

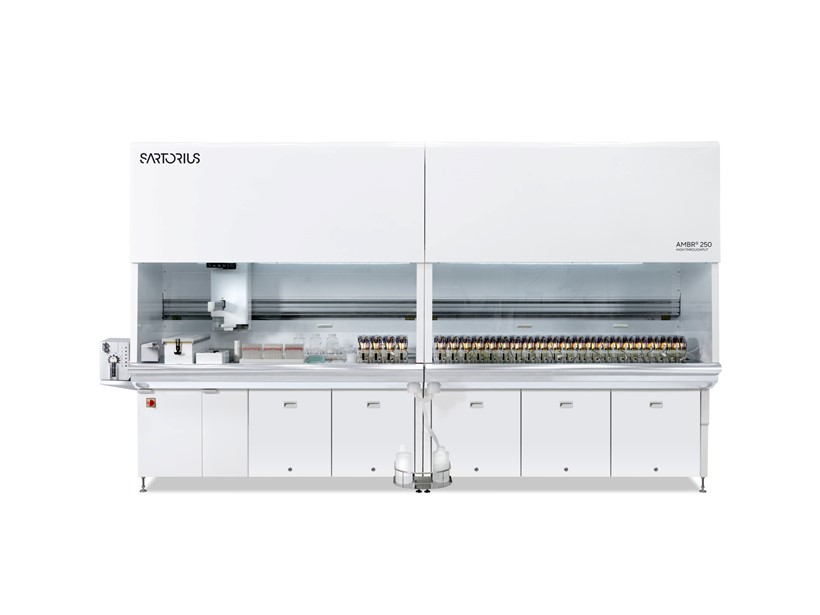

Ambr® 250 High Throughput

Achieve greater productivity

Ambr® 250 High Throughput, an automated bioreactor system, has 12 or 24 fully featured single-use 100 – 250 mL mini bioreactors.

  • speed up process development, process optimization and scale-down studies.
  • choose from different vessel configurations for either mammalian or microbial culture
  • undertake DOE and QbD studies with high-throughput automated operation

Find out more

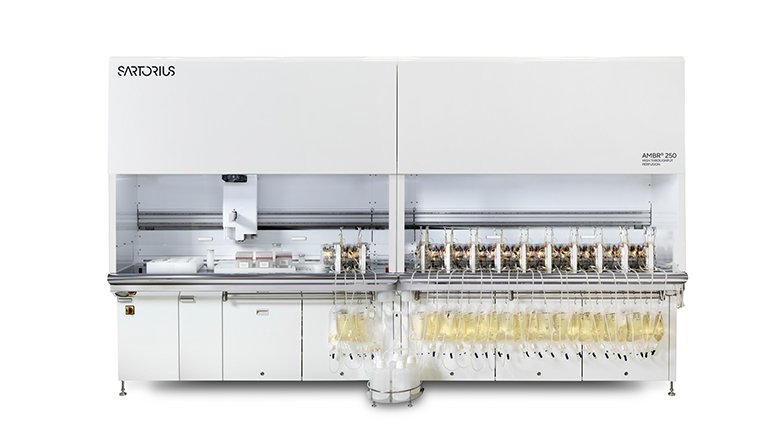

Ambr® 250 High Throughput Perfusion

Bioreactor for intensifying processes

Ambr® 250 High Throughput Perfusion, a parallel bioreactor system for rapid deployment of scalable perfusion processes, integrates up to 24 fully single-use 100 – 250 mL bioreactors in a fully automated liquid handling platform.

  • fast-track intensified cell culture processes
  • facilitate setup with irradiated and pre-assembled vessels and consumables
  • enable perfusion process DOE and QbD with high-throughput automated operation

Find out more
