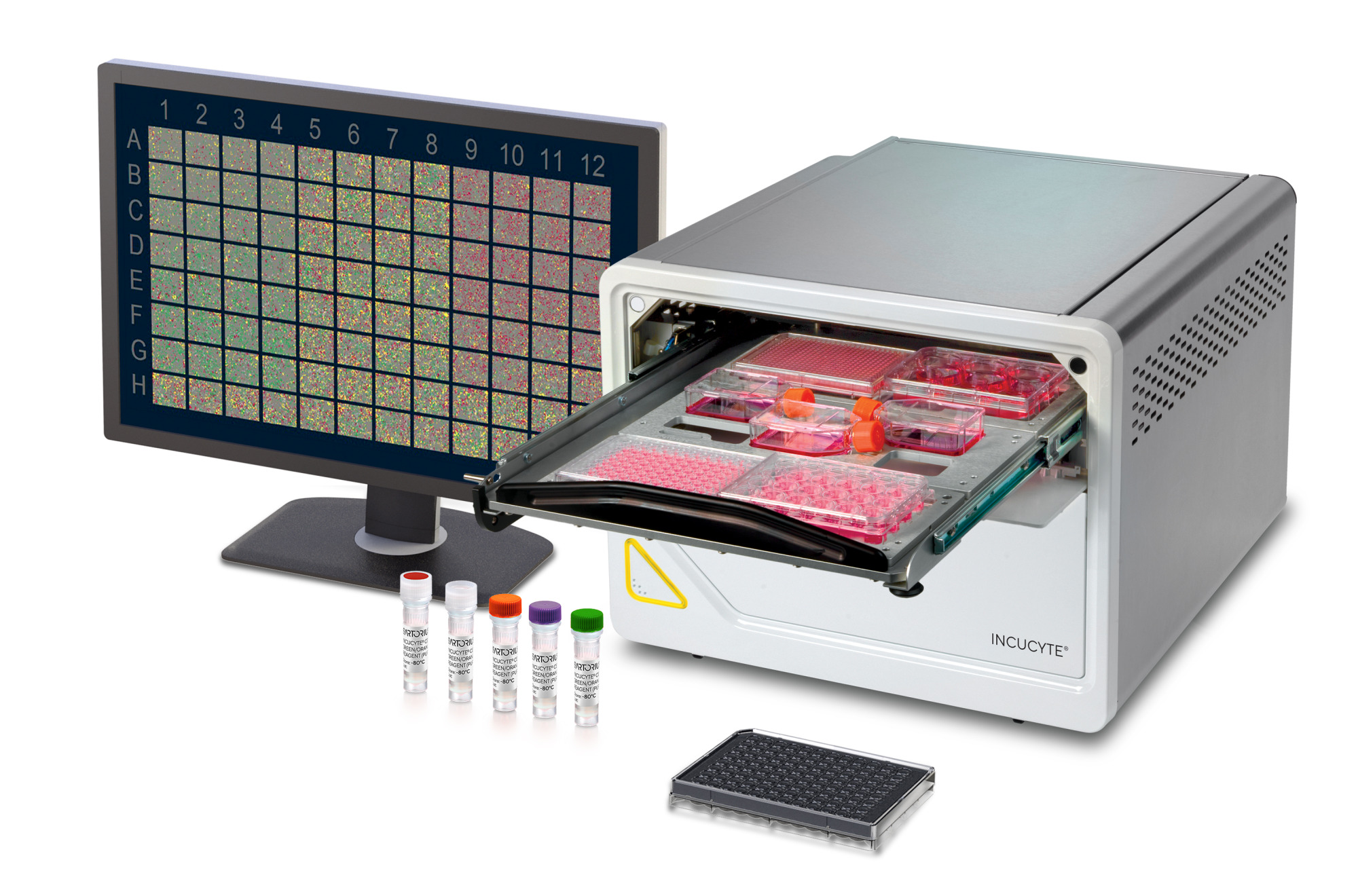

Incucyte® SX5 Live Cell Analysis Device
The Incucyte® SX5 is the latest and most advanced live cell analysis device that supports multiple applications and up to 5 fluorescence channels.
Price: On request
Learn more about each sample with the new Incucyte® SX5 with patented optics.
Incucyte® SX5 brings more channels, more reagents, more dedicated software for more applications. Extract deeper, physiologically relevant information about your cells.
About Incucyte® SX5
- up to five different fluorescence channels, up to three at a time in a single experiment
- new 3-color optical module includes a long wavelength, low phototoxicity NIR channel and optimized reagents for turnkey applications
- includes 4x, 10x, and 20x objectives on an automated turret
- supports 3 interchangeable vessel trays and over 600 vessels, up to 6 microplates in parallel
- seamless multi-user support via remote, networked access and unlimited, free licenses
- incubator size > 200 L
- incubation to 42°C
Frequently asked questions
| Features |
Incucyte® SX5 |
Incucyte® S3 |
Incucyte® SX1 |
| Total Fluorescense Channels | Up to 5 | 2 | 2 |
| Objectives | 4x | 10x | 20x (included) | 4x | 10x | 20x (included) | 10x (included) 4x | 20x (purchase separately) |
| Optical Module(s) | Green/Orange/NIR (included) | Green/Red (available for purchase) | Metabolism (available for purchase) | Green/Red (included) | Green/Red (included) |
| Label-Free HD Phase Imaging | ✓ | ✓ | ✓ |
| Objective Automation | Automated turret | Automated turret | Manual |
| See more | See more | See more |
| Features |
Incucyte® SX5 |
Incucyte® S3 |
Incucyte® SX1 |
| Cell-by-Cell Analysis Software Module | > 200 L required | > 200 L recommended | > 200 L recommended |
| Advanced Label-Free Classification Sofware Module | ✓ | ✓ | ✓ |
| Organoid Analysis Sofware Module | ✓ | ✓ | ✓ |
| Spheroid Analysis Sofware Module | ✓ | ✓ | ✓ |
| Scratch Wound Analysis Sofware Module | ✓ | ✓ | ✓ |
| Chemotaxis Analysis Sofware Module | ✓ | ✓ | ✓ |
| Neurotrack Analysis Sofware Module | ✓ | ✓ | ✓ |
| Neuronal Activity Analysis Sofware Module | ✓ | x | x |
| Angiogenesis Analysis Sofware Module | ✓ | ✓ | ✓ |
| AI Cell Health Analysis Sofware Module | ✓ | ✓ | ✓ |
| ATP Analysis Sofware Module | ✓ | x | x |
| See more | See more | See more |
| Features |
Incucyte® SX5 |
Incucyte® S3 |
Incucyte® SX1 |
| Interchangeable Trays | 3 | 3 | 1 |
| Microplate Capacity | 6 | 6 | 2 |
| Microplate Compatibility | 6 | 12 | 24 | 48 | 96 & 384 well | 6 | 12 | 24 | 48 | 96 & 384 well | 6 | 12 | 24 | 48 | 96 & 384 well |
| Flask Compatibility | T-25 | T-50 | T-75 | T-100 | T-175 | T-225 | T-25 | T-50 | T-75 | T-100 | T-175 | T-225 | T-25 | T-50 | T-75 | T-100 | T-175 | T-225 |
| Other Labware Compatibility | 35mm | 60mm | 100mm | 150mm dishes and chamber slides | 35mm | 60mm | 100mm | 150mm dishes and chamber slides | 35mm | 60mm | 100mm | 150mm dishes and chamber slides |
| See more | See more | See more |
| Features |
Incucyte® SX5 |
Incucyte® S3 |
Incucyte® SX1 |
| Operating System | 64-bit Windows 10 | 64-bit Windows 10 | 64-bit Windows 10 |
| Controller Data Storage | 27.3 TB | 27.3 TB | 27.3 TB |
| Expandable RAID Storage | Add an additional 32.7 TB of storage with Incustore | Add an additional 32.7 TB of storage with Incustore | Add an additional 32.7 TB of storage with Incustore |
| Controller Memory | 64 GB | 64 GB | 64 GB |
| See more | See more | See more |
